How-To

This is a quick how-to or setup-guide to have a local Wireguard server.

Requirements

Domain name (can be free using DuckDNS or any DDNS) that has your current WAN IP, WAN IP not recommended unless you have a static IP.

wg-easy-dns-only

Prerequisites

Sysctl

At some OS’s it is required to set two sysctl values for proper acces to your local network (LAN). Check your OS documentation how this needs to be done.

net.ipv4.ip_forward = 1
net.ipv4.conf.all.src_valid_mark = 1

Firewall rules

UDP Port 51820 (if kept standard) opened on your firewall with port-forwarding to your loadBalancerIP used in your .Values. How to setup port-forwarding with your network equipment, please check the manual of your device.

Chart Configuration

Namespace Labels

This chart needs to privileged rights. Add the following label to your namespace:

labels:
  pod-security.kubernetes.io/enforce: privileged

Configure your .Values

Set an IP to your Wireguard UDP servive. The default port for the Wireguard UDP service is 51820 and it needs to be accessible outside your network in order for the Wireguard tunnel to work. Therefore if you change this port make sure you change the port on your Firewall as well.

service:
  vpn:
    loadBalancerIP: ${WG_EASY_IP}
    type: LoadBalancer
    externalTrafficPolicy: Local

Configuration can be done via the following environment variables:

WG_HOST: Set WAN IP, or a Dynamic DNS hostname. A domain name cannot be proxied.
WG_MTU: The MTU the clients will use. Server uses default WG MTU = 1420
WG_PERSISTENT_KEEPALIVE: Value in seconds to keep the “connection” open. If this value is 0, then connections won’t be kept alive.
WG_DEFAULT_ADDRESS: only if it conflicts with other IP addresses on your network
WG_DEFAULT_DNS: can be set to your local DNS (eg my PiHole box) or a generic one like 1.1.1.1
WG_ALLOWED_IPS: Allowed IPs clients will use.
PASSWORD_HASH required - Always best to have some security in front of the GUI page. Password set needs to use bcrypt. You can create a hash at https://bcrypt.online/
LANG: Web UI language (Supports: en, ua, ru, tr, no, pl, fr, de, ca, es, ko, vi, nl, is, pt, chs, cht, it, th, hi).
UI_TRAFFIC_STATS: Enable detailed RX / TX client stats in Web UI

workload:
  main:
    podSpec:
      containers:
        main:
          env:
            WG_HOST: "${DOMAIN}"
            WG_MTU: 1420
            WG_PERSISTENT_KEEPALIVE: 0
            WG_DEFAULT_ADDRESS: "10.8.0.x"
            WG_DEFAULT_DNS: "191.168.1.1"
            WG_ALLOWED_IPS: "0.0.0.0/0, ::/0"
            PASSWORD_HASH: "$2y$12$iPAVrWmmVshBbr6CpJWGw.wlpaulOsVMpb.Tdo53xnNrpZt.T9odK"
            LANG: "en"
            UI_TRAFFIC_STATS: "false"

Recommendations for use of WG-Easy

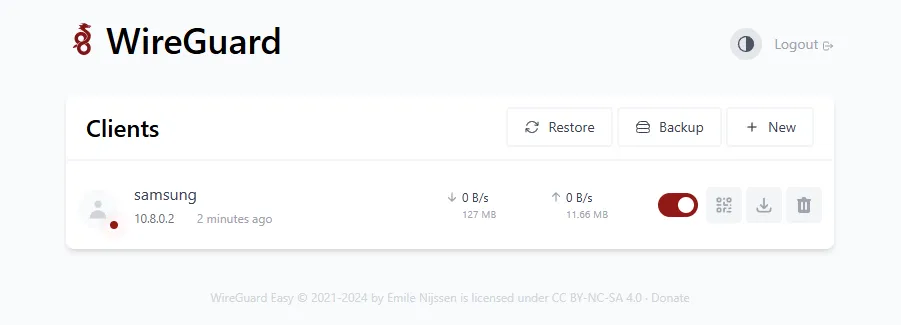

Multiple Users If you’re creating multiple users setting up Ingress for the Portal/GUI page is a secure and easy way to download your Wireguard configs or use the handy QR code scanner from your mobile device with the Wireguard app on iOS or Android.

wg-chart-gui

More options There’s a few options in the upstream container that aren’t present by default in this chart that can be added as environment values. Please refer to the upstream documentation as necessary and add those ENV VARS at your discretion without any support.

Important note for users with Clustertool Setup and WG_Easy

Cilium changes

Do this changes at your own risk. Those are not covered by Truecharts Support.

Access Applications running on your Talos Cluster from outside your LAN via WG_Easy, will not work with a standard Clustertool Setup. This can be made to work with a Cilium modification. Add the following to your Cilium deployment .Values:

socketLB:
  hostNamespaceOnly: true

Support

If you need more details or have a more custom setup the documentation on the upstream is very complete so check the descriptions of the options there.
You can also reach us using Discord for real-time feedback and support
If you found a bug in our chart, open a Github issue
