Installation Guide

Dataset Structure

This is the location your completed bittorrent files will be located

Setting user:group to apps.

Note

The apps:apps user:group is built into Truenas SCALE, it is the default user for most applications on Truenas SCALE. You do not have to create a separate user for each application.

When configuring your application you’ll typically see user:group 568, this is the UID for apps and its recommended not to change it.

App Installation

Networking

If you want to use ingress, its probably better to use clusterIP instead of LoadBalancer

WebGUI

We left this default since there was no reason to change the WebGUI port

This is ALSO the port Sonarr/Radarr and other services will use to connect to qBittorrent

Listening Ports

VPN “With VPN”

• No need to port forward on your router
• If you want fast seeding, you will need a service that supports port forwarding and set the TCP Listening Port to the port Desired
• Mullvad for example, from Qbit Webui, Tools > Options > Connection tab. Set TCP Listening port to the Port Provided by Mullvad.

NOVPN “Without VPN”

• You can leave the two ports default without a VPN
• If you want fast seeding though, you will need to port forward this port on your router

Storage

Configuration

The setup is default

Data

I always mount to the root directory of the container

VPN

Use the [Gluetun VPN Add-on Setup Guide](/

In-App Setup

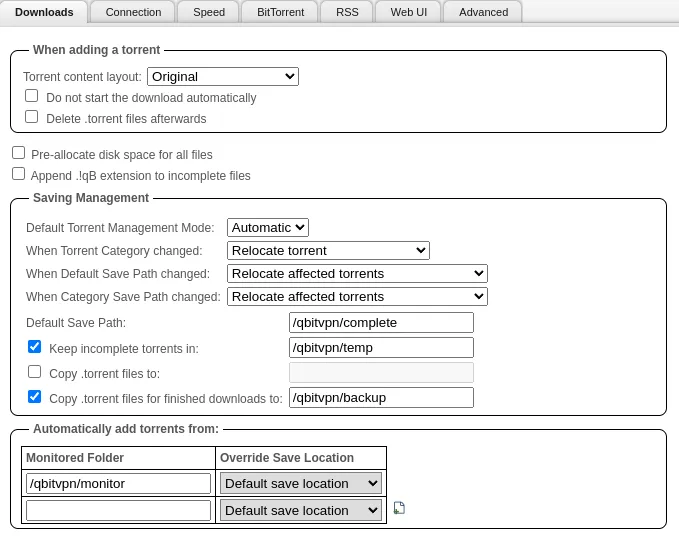

Downloads

qBittorrent “qBittorrent Table + Explanation”

|          Setting                                   |         Value                  |          Explanation                                                                 |
|------------------------------------------------    |----------------------------    |----------------------------------------------------------------------------------    |
| Default Torrent Management Mode:                   | Automatic                      | This is to automatically move the files torrents based on category                   |
| When Torrent Category changed:                     | Relocate Torrent               | This is to automatically move the files torrents based on category                   |
| When Default Save Path changed:                    | Relocate Affected Torrents     | This is to automatically move the files torrents based on category                   |
| When Category Save Path changed:                   | Relocate Affected Torrents     | This is to automatically move the files torrents based on category                   |
| Default Save Path:                                 | `/qbitvpn/complete `           | Set this to what you set your dataset mountpoint as                                  |
| Keep incomplete torrents in:                       | `/qbitvpn/temp`                | Keep incomplete torrents in a folder no apps are monitoring                          |
| Copy .torrent files for finished downloads to:     | `/qbitvpn/backup`              | Its nice to have a backup folder of all your `.torrents` in the event of a crash     |
| Monitored Folder                                   | `/qbitvpn/monitor`             | Place `.torrent` files in this directory to automatically start those torrents       |

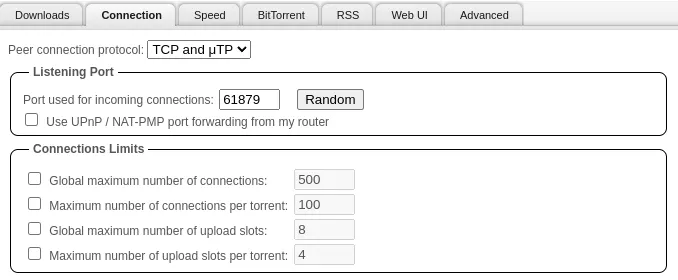

Connection

This should equal to your listening port you set during the installation

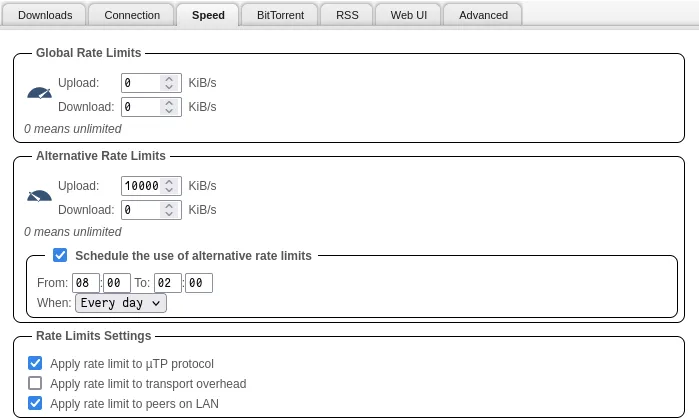

Speed

• Set Alternative Rate Limits to 10000 KiB
  • This is so during the day, or when users are using my Plex server, my qBittorrent instance isn’t using ALL of my bandwidth seeding
• Set my schedule from 08:00 to 02:00
  • 8am to 2am, which is around the time users are watching Plex

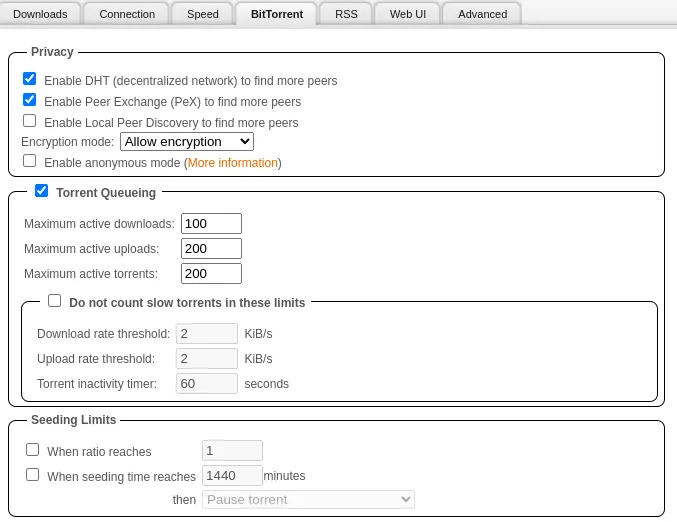

BitTorrent

• Disabled Local Peer Discovery
  • This is only useful if you are on a huge network, like a college campus or something like that

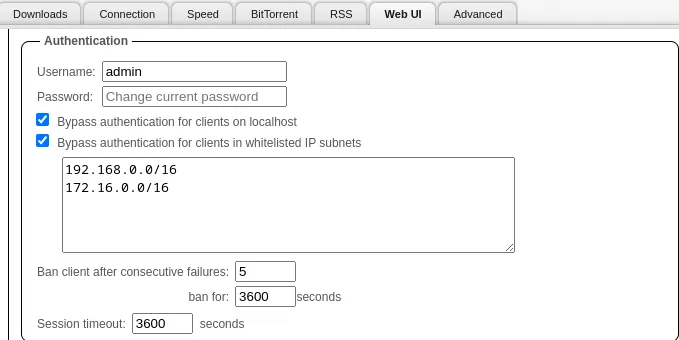

WebGUI

• Changed the password to something We would remember

Added both my LAN and Kubernetes LAN to the bypass list, this way neither of them have to authenticate, it gets annoying to log in over and over on your own network

Bypass authentication for clients in whitelisted IP subnets

• 192.168.0.0/16
• 172.16.0.0/16

Since We am using Traefik, We decided to add the Kubernetes LAN to:

Enable reverse proxy support

• 172.16.0.0/16

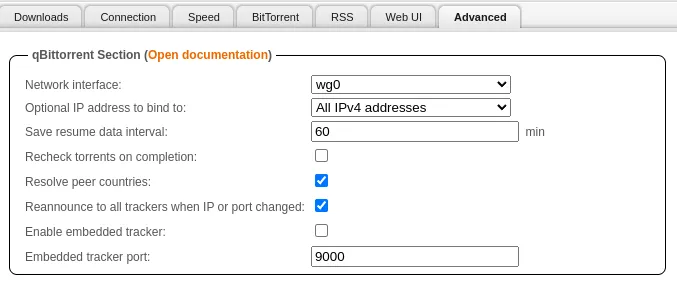

Advanced

qBittorrent “qBittorrent Table + Explanation”

|          Setting                                                       |         Value         |          Explanation                                                                    |
|------------------------------------------------                        |-----------------------|----------------------------------------------------------------------------------       |
| Network interface:                                                     | `wg0` or `tun0`       | Bind this to `tun0` if you are using Gluetun                                            |
| Optional IP address to bind to:                                        | All Ipv4 Addresses    | Kubernetes doesnt support ipv6 now anyway so, We set this to just ipv4                  |
| Resolve peer countries:                                                | True                  | Just so We can see what countries We am leeching/seeding from                           |
| Reannounce to all trackers when IP or port changed:                    | True                  | In the event my IP or port changes, We want everyone to know, so We can seed or leech   |
